Why local repairs destroy the concrete foundation

The difference between the elastic modulus and the physical causes of concrete failure around the repair patch

The building’s foundation operates under a constant combination of static and dynamic loads. During local repairs, a conflict inevitably arises between the repaired area and the old concrete—they have different physical and mechanical characteristics:

• Discrepancies in the elastic modules: Under load, the materials bend and return to their original shape at different rates and amplitudes.
• Differences in the coefficients of thermal expansion: Seasonal and diurnal temperature fluctuations cause uneven linear deformations in the repair seal and the base, weakening the contact between the seal and the base.
• Concentration of crushing efforts: Lifting and transport equipment with small wheels of high rigidity is used in warehouses and production facilities. The load on the axle of a loaded rig or electric forklift truck reaches 3-5 tons, with the wheel contact area only a few dozen square centimeters.

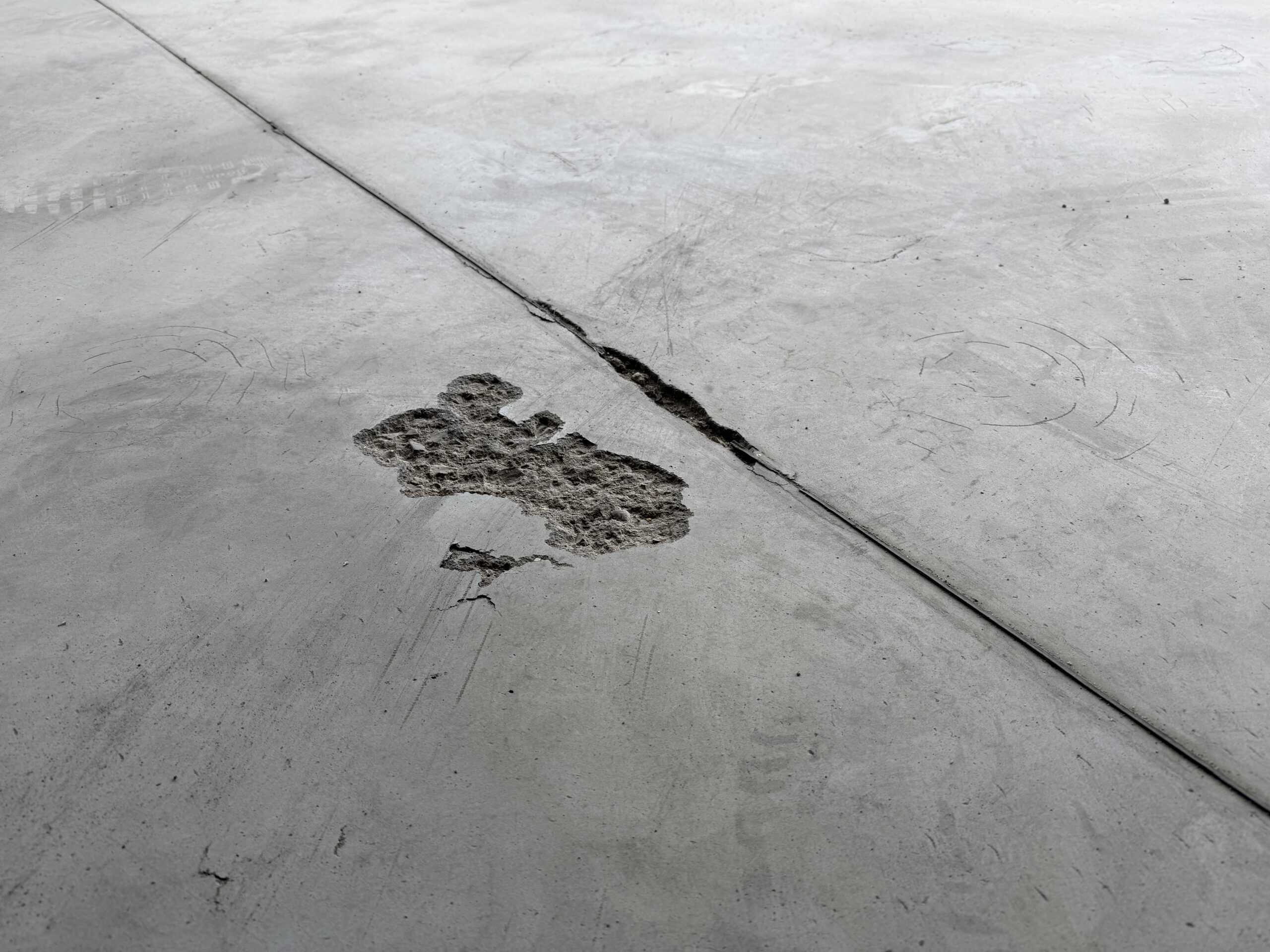

When a rigid wheel hits the repaired area, the dynamic impact through the repair seal of the floor transfers to the boundary between the seal and the rest of the floor. The seal itself will remain intact, but the adjacent weakened cement stone of the old slab will begin to deteriorate. Microcracks form along the perimeter of the new repair patch, which under regular loads (traffic, impacts, temperature fluctuations, vibrations) will develop into new deep cracks and cracks.

Why local repairs and superficial coating of the roads do not stop the wear and tear

The same mechanism underlies the progressive destruction of deformation and temperature-induced shrinkage joints. A seam in an industrial building is a movable structural element that compensates for temperature deformations and the contraction of the concrete.

With regular transport of heavy equipment, the edges of the seams experience increased loads. If the edge has already broken down, simply filling the resulting cavity with repair solutions will not restore the load-bearing capacity of the joint.

An even more common problem is concrete dust. Dust on the site is caused by the destruction and wear of the top layer of concrete slab (cement mortar), which lacks a large filler and is weakened by constant loads, and carbonation.

Surface clearing of only one working lane or section does not provide a systemic effect:

1. The paint-forming lacquers and primers under the wheels of loaders are washed off within 2-4 months, turning into an additional source of dirt.
2. Local road construction leaves the crumbling and dusty surface of neighboring areas untouched.
3. Airflows created by machinery movement and ventilation lift the fine-dispersed quartz-cement suspension and transport it through the processed aisles, contaminating the racks, the packaging of products, the optical height-sensing equipment, and the air-conditioning filters.

Turning a worn slab into a durable monolith without dismantling the foundation

Many business owners postpone repairs to the entire area, believing that large-scale work will require the installation of a new concrete slab. In practice, a properly installed concrete slab has an enormous reserve of strength and load-bearing capacity, and only its upper layer is susceptible to damage.

Solving the wear problem does not involve pouring new layers over the old ones, but rather physically and chemically modifying the existing concrete mass. To achieve these goals, engineers use the “Betonium” deep regeneration and modernization technology:

• Calibration and grinding: With planetary diamond-tipped grinding machines, the damaged cement mortar, oil residues, and traces of previous poor-quality repairs are completely removed from the surface of the slab. At the same time, the chips are cut off and the micro-relief is leveled.
• Repair of seams and cracks: All defects in the geometry are sealed. Cracks are expanded and filled with high-strength epoxy compounds with quartz filler. The edges of the deformation seams are restored with polymerbeton at the level of the main surface of the slab, after which the seams are cut again and filled with durable sealant.
• Chemical modification of the concrete structure: The cleaned and leveled surface is saturated with silicates-based impregnations containing lithium. Lithium penetrates the concrete pores and reacts with free calcium hydroxide (portlandite), transforming it into insoluble calcium silicates crystals. The material’s internal porous structure is compacted, dust formation is stopped at the chemical level, and the surface hardness increases to values above 7 units on the Mohs scale.

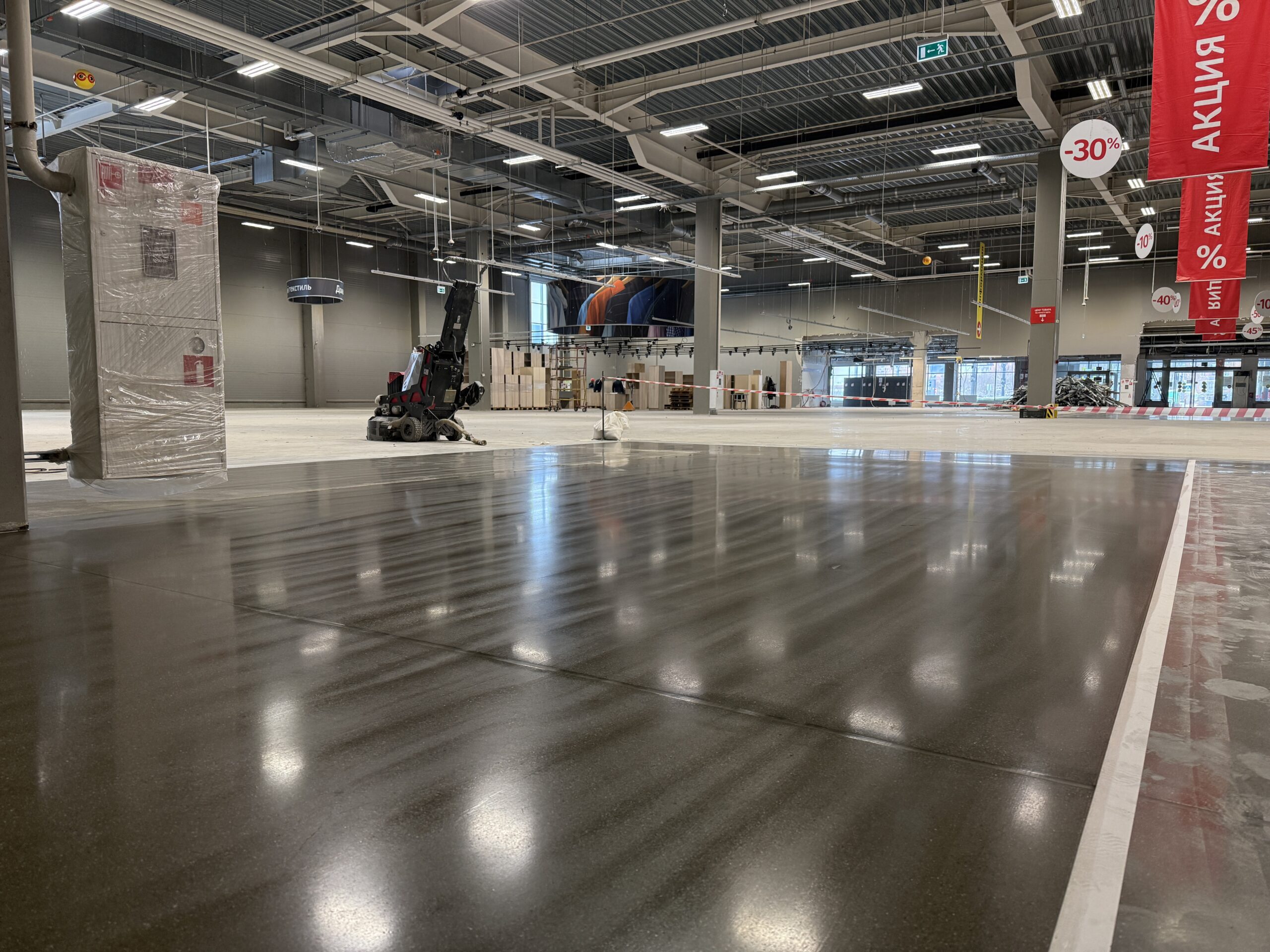

• Multistage diamond polishing: The surface is successively treated with polymer diamond pads, increasing the grain size. The concrete acquires a dense, smooth, and wear-resistant structure.

Unlike polymer-based flooring or toppings, there is no surface film that could peel off, swell from capillary moisture, or be rubbed off by forklift wheels. The strength and wear resistance are built into the core of the slab, ensuring that the floor can easily withstand the calculated loads for more than 20-25 years and is backed by a 5-year tConcrete warranty.

Gradual modernization of the foundation using independent zones

The main barrier in deciding to renovate the entire area is the impossibility of stopping the facility's operational processes. Modernizing the foundation of tCocncete does not require stopping the facility or evicting the tenants.

All work is carried out using the modular zones technology:

• Area zoning. Together with your responsible representatives, we divide the work area into independent technological sections.
• Work with specialized vacuum cleaners. Grinding and polishing systems are connected to powerful three-turbine industrial aspirating units. This virtually eliminates the release of dust into the warehouse atmosphere, protecting the shelves with goods and electronics.
• Flexible production schedule. The main noisy and dusty stages are performed in night shifts or technological windows with minimal traffic of equipment. Logistics flows are redirected to adjacent alleys.
• Quick commissioning. As soon as the area is finished processing, it is immediately open for forklift traffic, and the crew moves on to the next section.

This method has already proven its effectiveness on dozens of complex industrial facilities: at the production complexes of Samsung Electronics (25,000 m²) and LG Electronics (24,000 m²), the modernization proceeded without stopping the production lines; at the warehouse of the electrical engineering company ETM (5,200 m²), the integrity of the floor was restored within the contracted timeframe.

How to determine the boundary between local retrofitting and comprehensive modernization

To avoid overspending on the budget and choose the appropriate floor maintenance strategy, you simply need to rely on three basic engineering criteria:

1. A single mechanical damage. If a single localized crack has formed on a solid, relatively new, and not worn concrete base (for example, due to the fall of a heavy load or the impact of a loader’s blade), and the seams and adjacent areas are stable, not damaged, and not crumbling—a spot repair is quite sufficient.
2. Repeated damage on the same roads. If the cracks that were repaired earlier are again collapsing, and new sections of concrete are painted along the new patches—localized repairs have exhausted their effectiveness. This indicates that the dynamic loads exceed the resistance of the surface layer. Further localized repairs in this area and in new ones will only burn through the operating budget, because localized repairs with your foundation don’t work.
3. Multiple defects throughout the work area. If cracks are observed in several sections, the edges of the deformation seams are broken, the areas of damage are expanding, and fine cement dust is scattered across the floor — the destruction has affected the entire concrete area. In this state, the only economically justifiable solution is a comprehensive restoration of the entire work area.

To assess the actual effectiveness of the work, it is not necessary to immediately agree on the investment for the entire area of the facility. tConcrete will carry out work on a test site in the most damaged and busiest area of your facility. The sample is made in 5 days without stopping the operation of the facility; work may be carried out in night shifts. The sample area ranges from 100 to 500 m2. All these parameters are discussed.
Next, you can assess the effects yourself, calculate the payback period, and tConcrete will start working on scaling up to your entire project.
